Overview

General specifications

Application: Street and highways, Bike and pedestrian paths, Urban lighting
Product Type: Top pole luminaires
Mounting Type: Pole mounted
Indoor/Outdoor Light: Outdoor

Lighting specifications

Led Modules: High Modules, Mid Modules
CRI: 75
SDCM Initial And Working: 5
Lumen Maintenance Code: 9
Average Lamp Life (H): 100000
Light Source: SMD LED

Optical specification

Optic: Parks and wide areas, Street Type I, Street Type II/lll, Street Type ll, Street Type lll, Street Type V, Street Type VS, Type Asymmetric - A60

Electrical specification

Nominal Voltage and Frequency: 230/50
Input Voltage and Frequency: 180-265/50-60
Led Module Operating Voltage (V): 36, 48
Total Harmonic Distortion: ≤15%
Electrical Protection Class: I
Power factor: 0.95

Mechanical Characteristics

Body Color: Grey(01), Black(02), White(03), Graphite Grey(04)
IP Rating: 66
Body Material: Aluminum die-cast
Protection Against Mechanical Impacts: IK07
Body Coating: Electrostatic powder paint
Closing Screen: Tempered glass
Rated Ambient Temperature (°C): 25
Working Temperature Range (°C): -20 ~+50
Maximum Allowed Humidity (%): 95
Rated Abrupt Failure Value (%): 15

Weight and dimensions

Pipe Holder Diameter (mm): Ø33~42
Weight (Kg): 2.6~3
Dimensions (mm): 453(L)X206(W)X97(H), 495(L)X206(W)X97(H)

Easiness and versatility

Wiring and maintenance activities

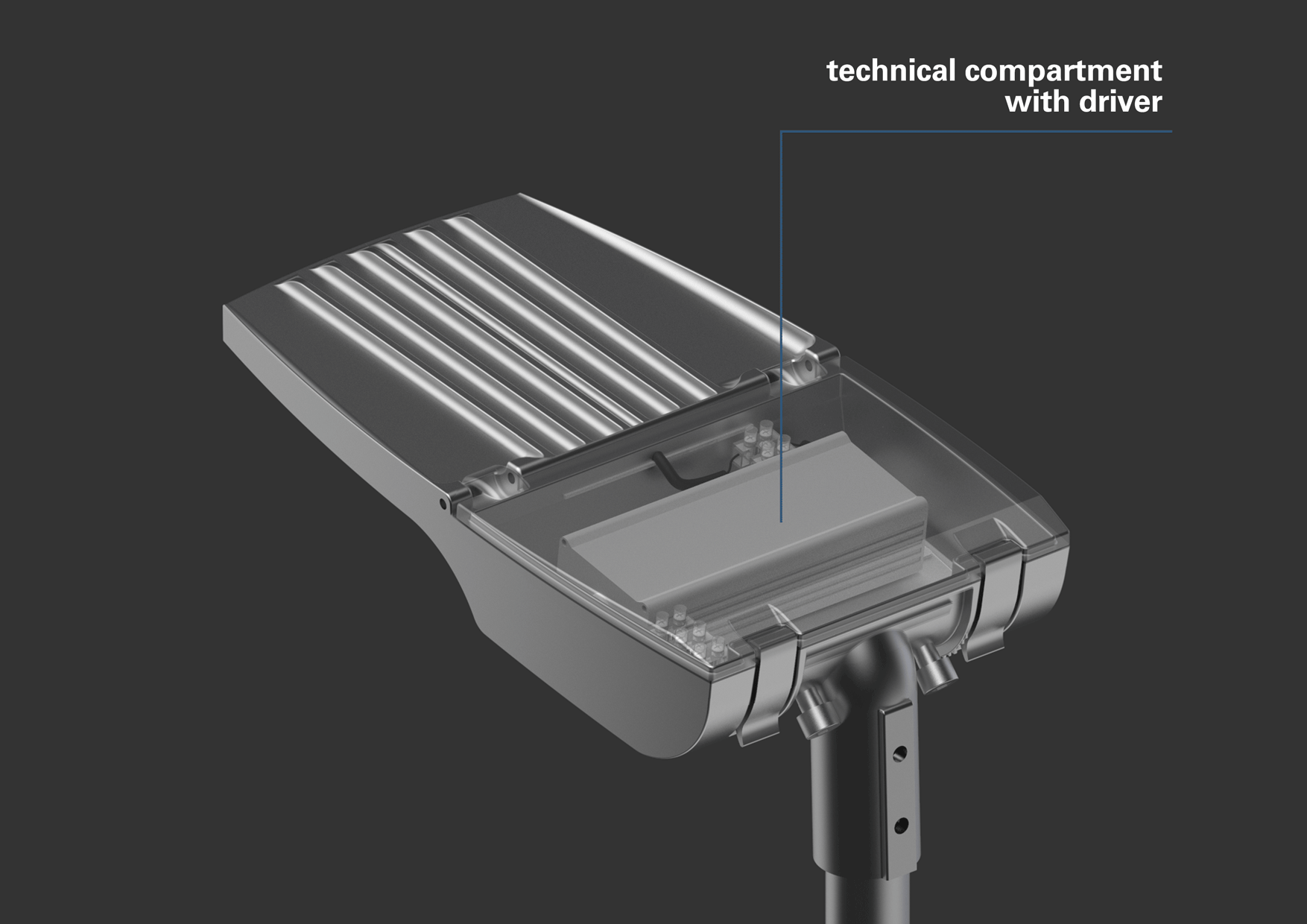

Carina offers a simple maintenance system. Door opens with a simple click and swings up to reveal the technical compartment. A practical and functional design grants the possibility to easily remove and replace driver and cables.

Ease of use

The lock handle with self-locking springs is simple and immediate. To uncover Carina it's enough to unlock the handles on the back of the body. When product is closed high levels of IP are safed together with a waterproofing system and a strong resistance to corrosion.

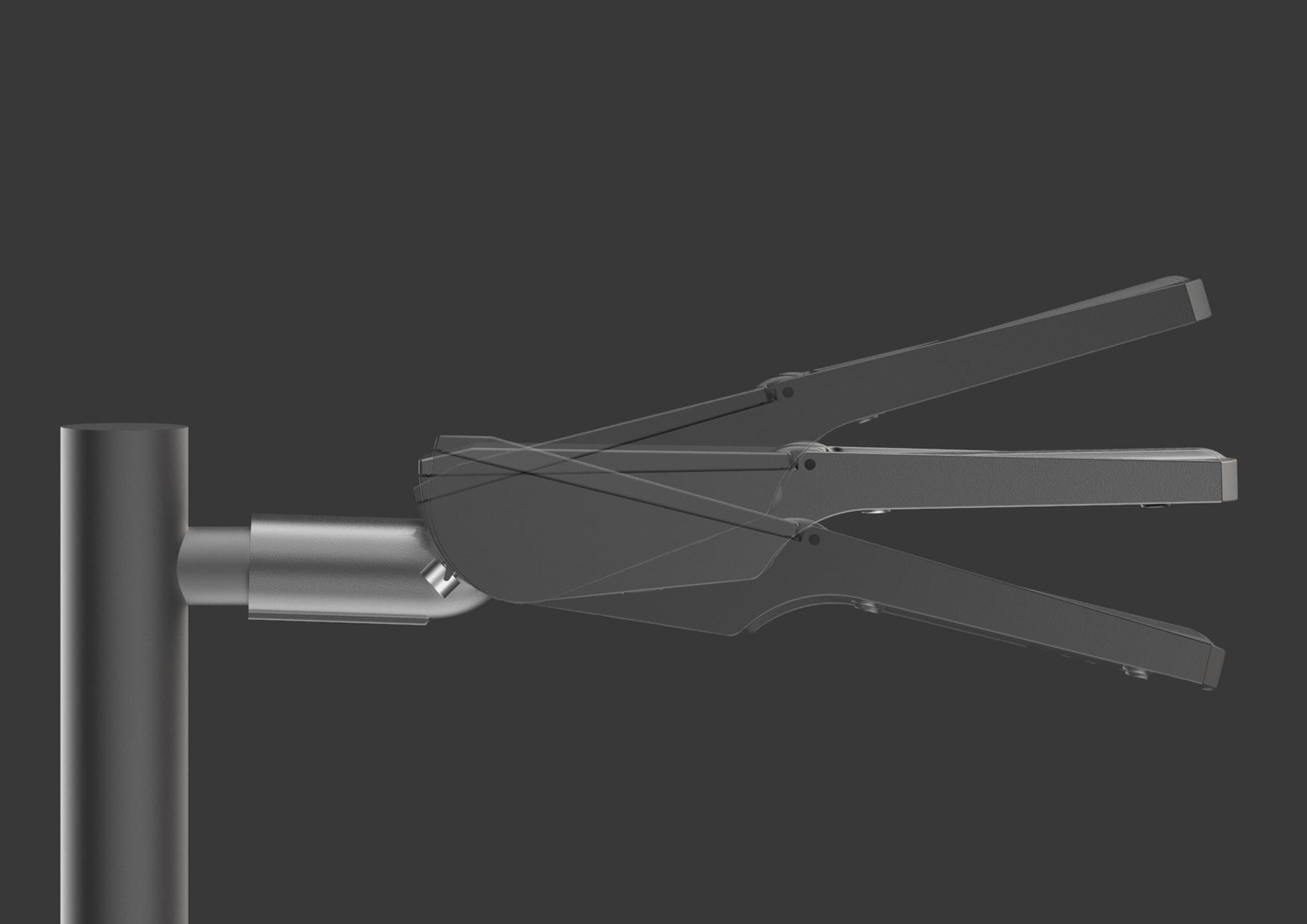

Tiltability

Thanks to a practical assembly system, Carina can be oriented according to project requirements. In the version with horizontal arm the post-top can turn from -15° up to +15°, in the one with vertical arm it can turn from +75° up to 105°.

  • Carina1-bis_easiness-1_web.png
  • Carina1-bis_easiness-2_web.png
  • Carina1-bis_easiness-3_web.png

    Optic performances

    The key to the luminous efficacy of Carina family is undoubtedly the use of a combined system of LED modules and lenses that allow uniform distribution of the light beam, visual comfort and chromatic stability.

    High Module is the last generation of the Espica led modules based on High-power LEDs to provide the technical requirements of road and urban applications with high efficiency.

    Mid Module has been designed for those looking for a mid-power LED to have a more economical alternative with the same luminaire footprint.

    Carina's optical package is composed of led modules mounted on a rigid and thermally conductive substrate, topped with integrated polycarbonate high-tech lenses.

    All of this translates in no reduction in visual performances. The perfect combination between led modues and lenses allows to reduce the contrast in luminance between the surroundings and the glare light source.

    Smart City

    Smart accessories

    Carina offers a full range of light control possibilities. Managing the flux, power and switch-on time of luminaires is a fundamental requirement for modern urban spaces, increasingly conditioned by the issue of sustainability and energy saving.

    Carina family can be equipped with remote control devices. Thanks to this system, it’s possible to create a communication network and integrate lighting fixtures in a smart city system and save significantly on electricity costs.

    • Carina-1-smart-city-2-bis_web.png
    • Carina-1-bis-smart-city_web.png

      Applications

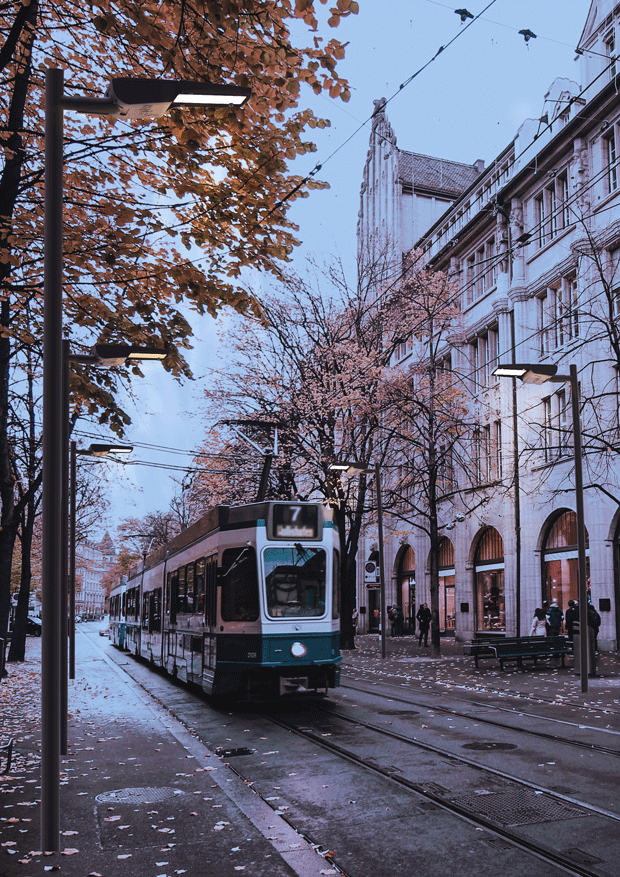

      Street lighting

      Correct LED street lighting must guarantee maximum visual quality, safety and energy efficiency. The goal of street lighting is therefore to allow citizens to move in safety and allow administrations to save on energy costs. The optical system of Carina guarantees excellent lighting performance, an infallible anti-glare system and a light cutoff equal to zero. Carina is the best solution to ensure visual perception for the driver and maximum visual comfort for pedestrians on all types of roads. Plus, the optics of our products also reduce light pollution, illuminating efficiently only where necessary.

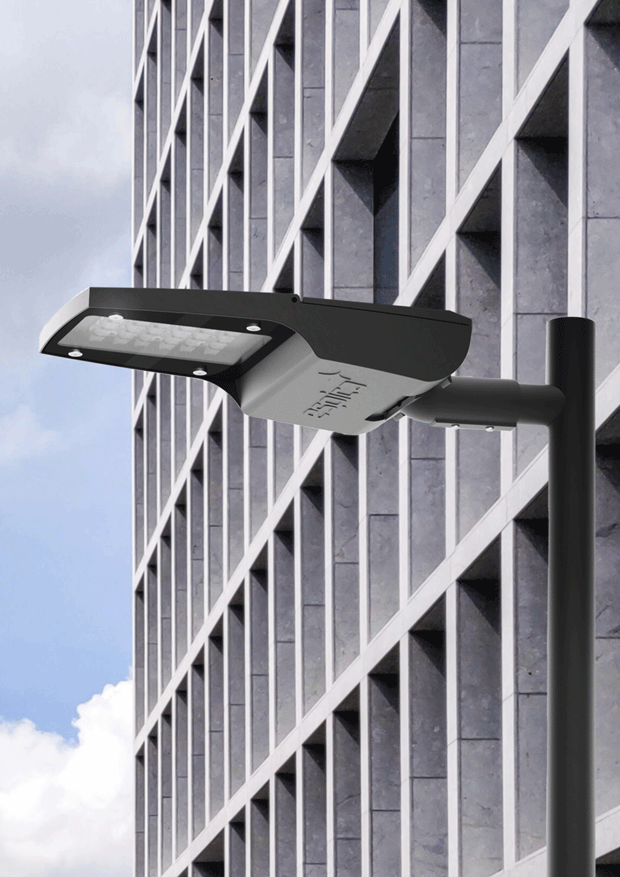

      Square and pedestrian areas

      Carina family also adapts to urban scenarios, squares and pedestrian areas. The innovative Mid Module LED technology makes it possible to contain the luminous fluxes and - together with the different optics available - to shape the light on urban areas with complex geometries. The versatility of light distribution, the excellent color rendering, the cut-off system and the great resistance of the products to outdoor environments allow to create intriguing light scenarios.

      Bike and pedestrian areas

      Thanks to the high IP degree, Carina can be applied to all types of walkways. From an optical point of view all the products in the range are cut-off this means that no light is emitted above the horizon line and light pollution is prevented. Generally, the luminaires that illuminate the paths are arranged along the path, Carina, in this sense, can be integrated into any type of pole thanks to the great variety of pipe holders.



      • 01bis_applicazioni_web.png
      • 02-bis_applicazioni_web.png
      • 03-bis_applicazioni_web.png
