General specifications

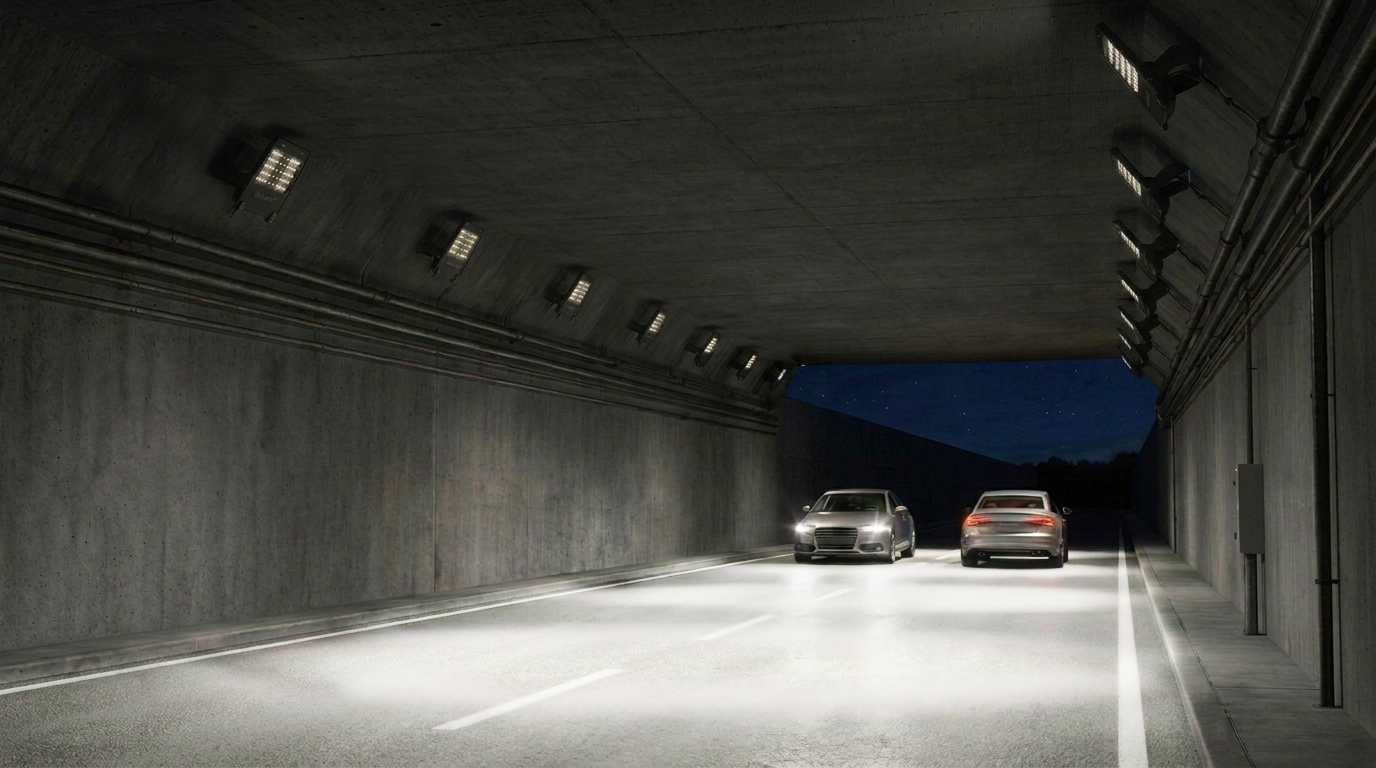

Application: Urban lighting, Car parks, Tunnels and underpasses, Sport facilities, Large areas
Product Type: Flood lights, Tunnel lights
Mounting Type: Surface mounted, Ceiling mounted, Wall mounted
Indoor/Outdoor Light: Outdoor

Lighting specifications

CRI: 75
SDCM Initial And Working: 5
Lumen Maintenance Code: 9
Average Lamp Life (H): 100000
Light Source: SMD LED

Optical specification

Optic: Batwing - Symmetric Tunnel Lighting - Ceiling Lighting, Parks and wide areas, Symmetric 25°, Symmetric 60°, Symmetric 90°, Tunnel Lighting - Ceiling Lighting System with symmetric Optic, Tunnel Lighting - Counter-Beam Lighting System, Tunnel Lighting - Unilateral and bilateral Lighting System

Electrical specification

Nominal Input Current 230 (A): 0.800, 0.920
Nominal Voltage and Frequency: 230/50
Input Voltage and Frequency: 180-265/50-60
Led Module Operating Voltage (V): 36, 48
Total Harmonic Distortion: ≤15%
Electrical Protection Class: I
Power factor: 0.95

Mechanical Characteristics

Body Color: Grey(01), Black(02), White(03), Graphite Grey(04)
IP Rating: 66
Body Material: Aluminum die-cast
Protection Against Mechanical Impacts: IK07
Body Coating: Electrostatic powder paint
Closing Screen: Tempered glass
Rated Ambient Temperature (°C): 25
Working Temperature Range (°C): -20 ~+50
Maximum Allowed Humidity (%): 95
Rated Abrupt Failure Value (%): 15

Weight and dimensions

Weight (Kg): 10.25
Dimensions (mm): 598(L)X433(W)X93(H)
