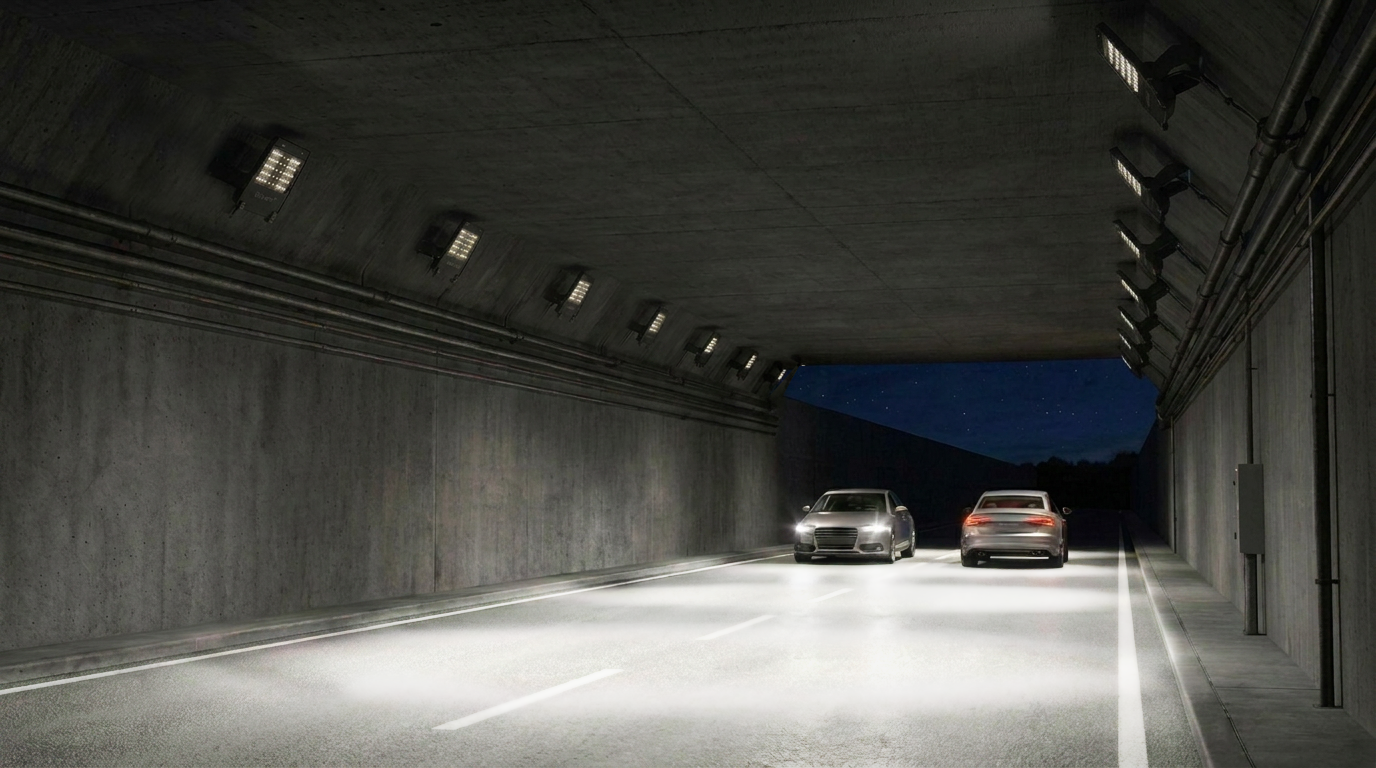

Electra is the perfect range for lighting large outdoor areas, car parks, tunnels and underpasses. Thanks to its essential shapes and excellent heat dissipation system, Electra operates in a power range from 35 to 200 Watt without losing performance in terms of delivered lumen.
The Electra family features a compact and contemporary design, color temperatures from 3000K up to 6500K and a high luminous efficiency. Equipped with standard power supply with precise current control, high power factor and low harmonic distortion, Electra can be equipped with different types of optics, configuring itself as the perfect tool for lighting large outdoor environments.
Application: Urban lighting, Car parks, Tunnels and underpasses, Sport facilities, Large areas
Product Type: Flood lights, Tunnel lights
Mounting Type: Surface mounted, Ceiling mounted, Wall mounted
Indoor/Outdoor Light: Outdoor
CRI: 75
SDCM Initial And Working: 5
Lumen Maintenance Code: 9
Average Lamp Life (H): 100000
Light Source: SMD LED
Optic: Batwing - Symmetric Tunnel Lighting - Ceiling Lighting, Parks and wide areas, Symmetric 25°, Symmetric 60°, Symmetric 90°, Tunnel Lighting - Ceiling Lighting System with symmetric Optic, Tunnel Lighting - Counter-Beam Lighting System, Tunnel Lighting - Unilateral and bilateral Lighting System
Nominal Voltage and Frequency: 230/50
Input Voltage and Frequency: 180-265/50-60
Led Module Operating Voltage (V): 48
Total Harmonic Distortion: ≤15%
Electrical Protection Class: I
Power factor: 0.95
Body Color: Grey(01), Black(02), White(03), Graphite Grey(04)
IP Rating: 66
Body Material: Aluminum die-cast
Protection Against Mechanical Impacts: IK07
Body Coating: Electrostatic powder paint
Closing Screen: Tempered glass
Rated Ambient Temperature (°C): 25
Working Temperature Range (°C): -20 ~+50
Maximum Allowed Humidity (%): 95
Rated Abrupt Failure Value (%): 15
Weight (Kg): 2.45
Dimensions (mm): 330(L)X240(W)X70(H)
