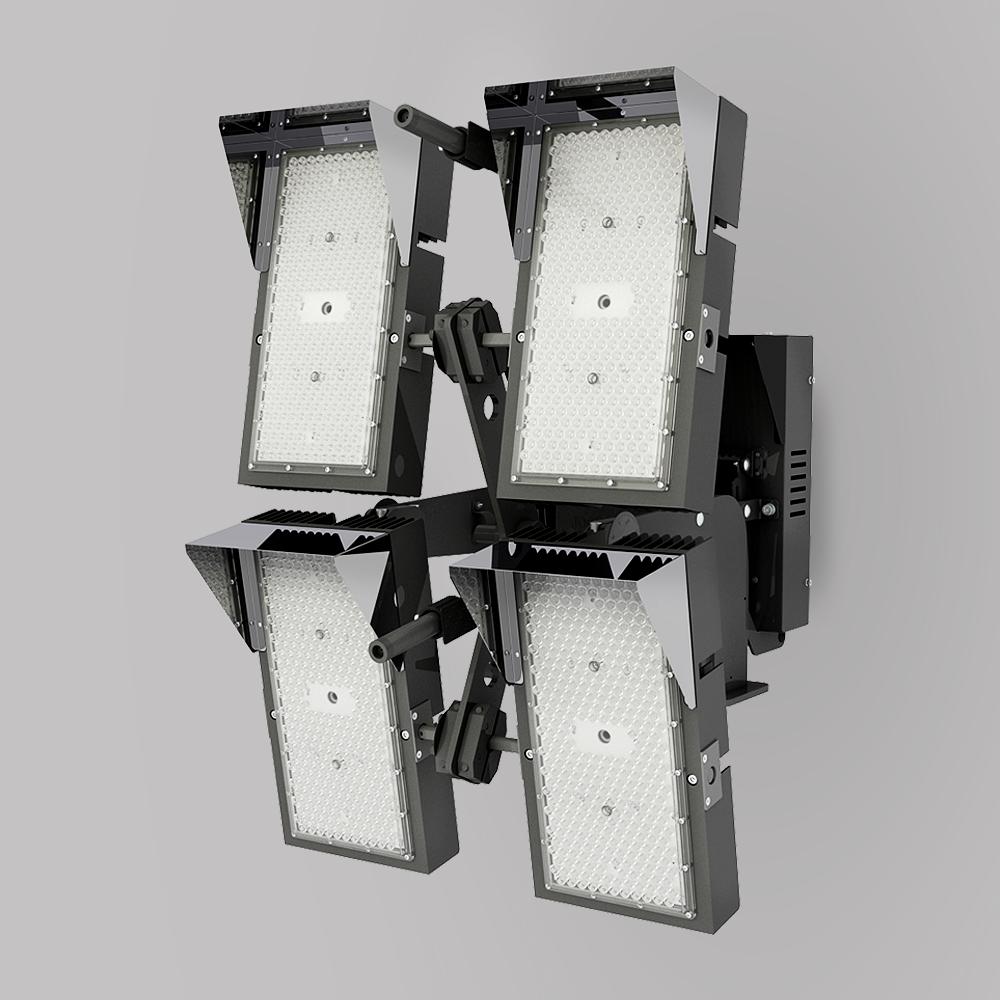

Jupiter is the ideal solution for illuminating large outdoor spaces such as car parks, tunnels, and sports facilities. Its clean design and advanced heat dissipation system ensure reliable performance across a power range of 900 to 1800 Watts, maintaining optimal lumen output without compromise.
The Jupiter range combines a compact form factor with excellent efficiency, offering color temperatures from 3000K to 6500K and outstanding luminous efficacy. Supplied with a high-quality power unit featuring precise current regulation, high power factor, and low harmonic distortion, Jupiter is available with four optical configurations, making it a versatile and effective choice for large-scale outdoor lighting.
Application: Urban lighting, Car parks, Sport facilities, Large areas
Product Type: Flood lights
Mounting Type: Surface mounted, Ceiling mounted, Wall mounted, Ceiling pendant
Indoor/Outdoor Light: Outdoor
Led Modules: High modules
Power(W): 1200
Delivered Lumen (lm): 159000, 167000, 181000, 185000, 191000, 195000, 201000
System Luminous Efficiency (lm/W): 132, 139, 150, 154, 159, 162, 167
CRI: 75
SDCM Initial And Working: 5
Color Temperature (°K): 3000, 4000, 5000, 6500
Lumen Maintenance Code: 9
Number of LEDs (pcs): 504, 1344
Average Lamp Life (H): 100000
Light Source: SMD LED
Optic: Symmetric 10°, Symmetric 30°, Symmetric 50°, Symmetric 80°
Nominal Input Current 230 (A): 5.500
Nominal Voltage and Frequency: 230/50
Input Voltage and Frequency: 180-265/50-60
Led Module Operating Voltage (V): 48, 54
Electrical Protection Class: I
Nominal Power Of Single Led: 1.5W, 6W
Power factor: 0.95
Driver Type: Integrated Driver On/Off
Body Color: Grey(01), Black(02), White(03), Graphite Grey(04)
IP Rating: 66
Body Material: Extruded Aluminium/Stainless Steel-Iron
Body Coating: Electrostatic powder paint
Closing Screen: Polycarbonate
Rated Ambient Temperature (°C): 25
Working Temperature Range (°C): -20 ~+50
Maximum Allowed Humidity (%): 95
Weight (Kg): 53
Dimensions (mm): 810(L)X810(W)X582(H)
