Overview


General specifications

Application: General lighting, Offices, Retail and shops, Residential
Product Type: Downlights
Mounting Type: Recessed mounted
Indoor/Outdoor Light: Indoor

Lighting specifications

CRI: 90+
SDCM Initial And Working: 3
Unified glare rating: 19
Average Lamp Life (H): L80B10@100, 000hrs
Light Source: COB LED

Optical specification

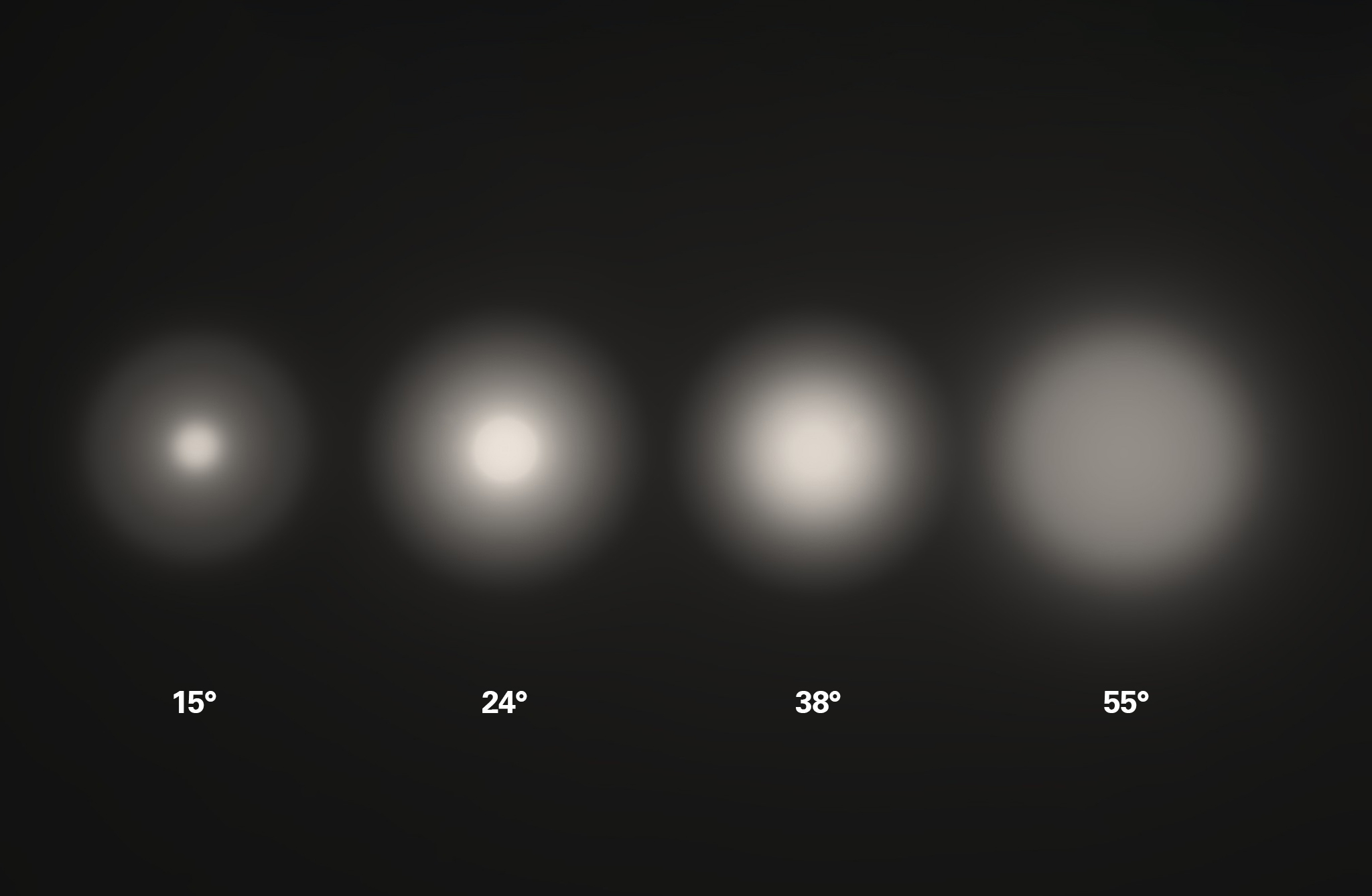

Optic: 15°, 24°, 38°, 55°
Emission: Direct
Orientation:
Aiming: Fixed

Electrical specification

Nominal Voltage and Frequency: 230/50
Driver Mounting: Separate

Mechanical Characteristics

Body Color: Black(05), White(06)
IP Rating: 20, 44
Body Material: Aluminum
Rated Ambient Temperature (°C): 25
Working Temperature Range (°C): -20 ~+40

Weight and dimensions

Weight (Kg): 0.302
Type of bezels: Trimless
Dimensions (mm): 51.5(D)X86.9(H)
Cut-Out (mm): Ø55
Recessed Depth (mm): 86.90
Ceilings Thickness (mm): 8-20

Modularity and simplicity


A modular design

The Felis light source consists of a simple composition of elements: the LED module to which is added the beam lens and its accessories (honeycomb or soft lens) and - in order to close the system - the locking ring. Simple and essential. No tools are needed for assembly, once assembled the object has a high degree of protection. The final downlight fitting is made up of the LED engine module + the mounting ring. Also in this case no tools are required for assembly, to combine the two pieces it is sufficient to turn clockwise to lock and anticlockwise to unlock. Simple, right?



Adjustability and tiltability

The Felis range covers all possible interior applications, thanks to the possibility of directing the light beam. Felis can be adjusted by 30° on the vertical axis and can tilt on the horizontal axis up to 355° in order to allow precise direction of the beam.

  • Modularity-and-simplicity_pok-web.png
  • adjustability-and-tiltability_web.png

    Optic performances


    Thanks to meticulous planning, the LED module is harmoniously integrated into the fitting and made invisible. The visible part of the reflector also produces a glare equivalent to zero. The sum of these ingredients produces a high visual comfort.

    Honeycomb filter and soft lens can be added to provide maximum visual comfort. The accessories must be inserted between the beam lens and the locking system ring.



    Applications


    Felis is the modern range of ceiling downlights designed for all applications and built in the name of versatility. Thanks to its tilting and adjustability properties on both axes and to the different optic beams the light can be delivered in all applications. Furthermore, Felis offers a wide range of dimensions, bezels, trimless versions and secondary reflectors. Thanks to the countless combinations, Felis is configured as the ideal tool for lighting homes, hotels, retail and many other indoor applications.

    Whether you are looking for discreet lighting solutions or a focal point that captures attention, our contemporary ceiling recessed lights offer extreme versatility. With various shapes, sizes, and finishes to choose from, you can customize the look of your ceilings to perfectly match your unique style.

    In addition to their aesthetic beauty, our contemporary ceiling recessed lights also provide efficient and effective illumination. By utilizing cutting-edge technologies, we ensure a uniform and comfortable light that spreads evenly throughout the surrounding environment. This creates an inviting and cozy atmosphere, whether it's a living room, dining area, office, or any other room in your home or workspace.

    • Felis-application_1.png
    • Felis-application_2.png
