Overview


General specifications

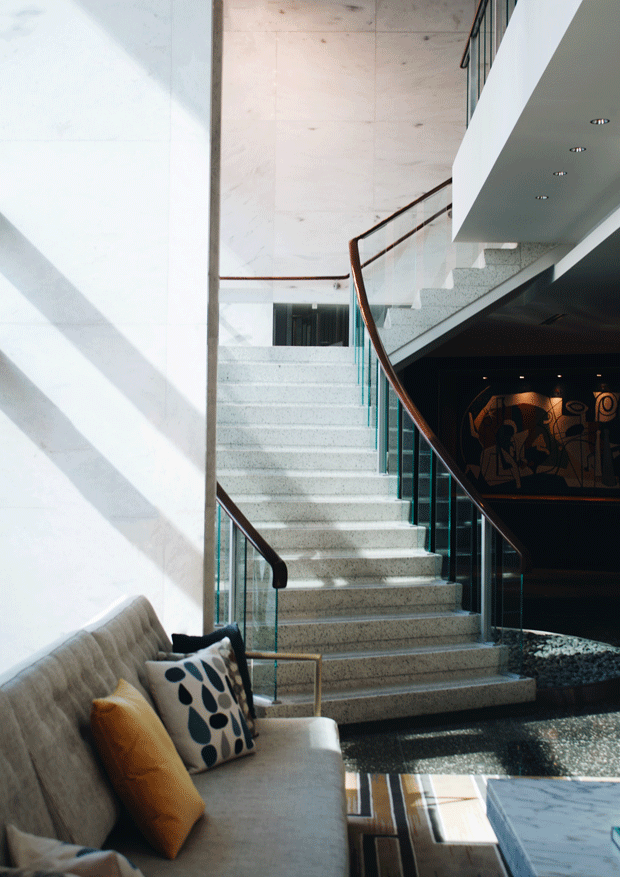

Application: General lighting, Offices, Retail and shops, Residential
Product Type: Downlights
Mounting Type: Recessed mounted
Indoor/Outdoor Light: Indoor

Lighting specifications

CRI: 90+
SDCM Initial And Working: 3
Unified glare rating: 19
Average Lamp Life (H): L80B10@100, 000hrs
Light Source: COB LED

Optical specification

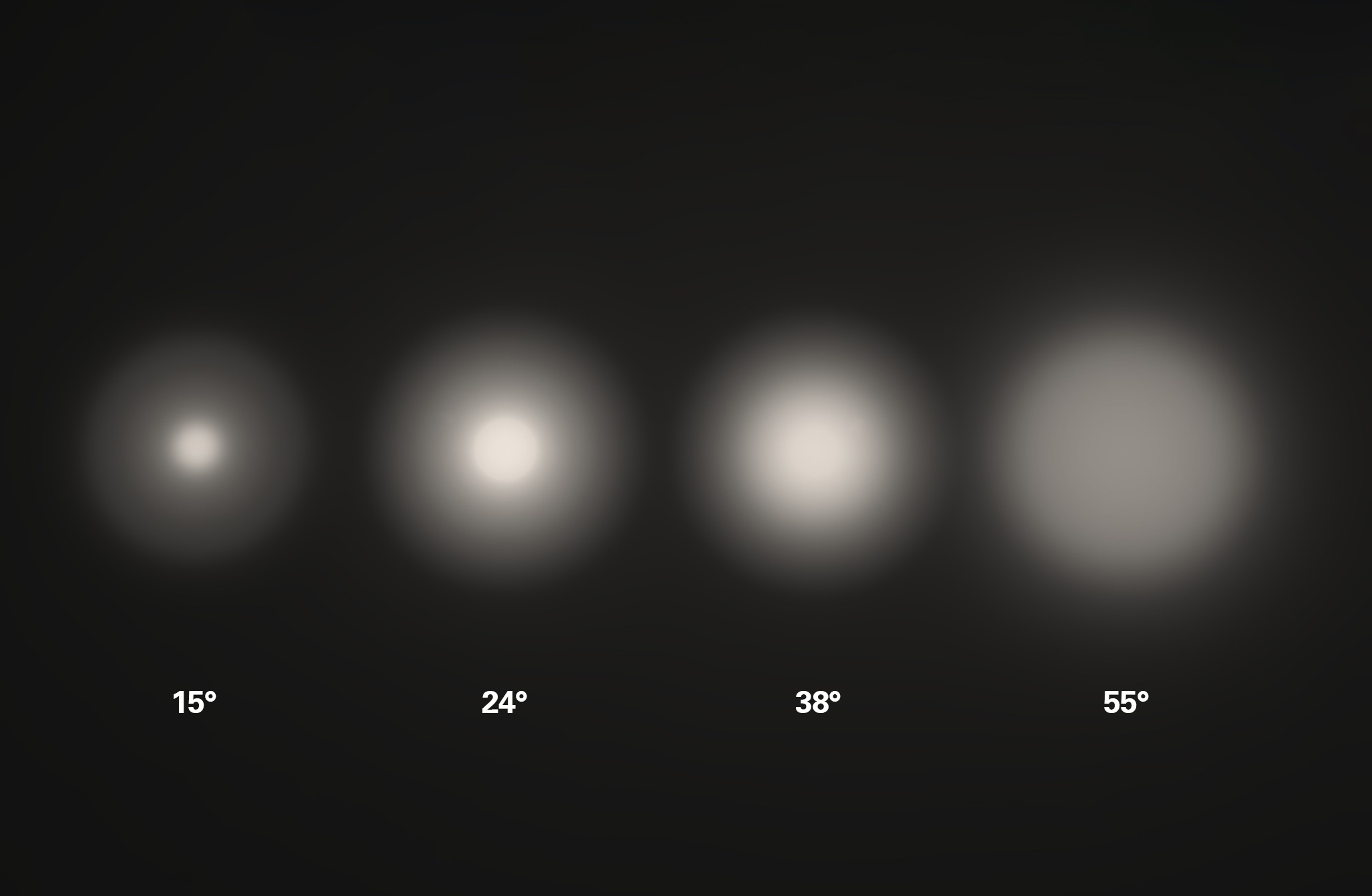

Optic: 15°, 24°, 38°, 55°
Emission: Direct
Aiming: Fixed

Electrical specification

Nominal Voltage and Frequency: 230/50
Driver Mounting: Separate

Mechanical Characteristics

Body Color: Black(05), White(06)
IP Rating: 20, 44
Body Material: Aluminum
Rated Ambient Temperature (°C): 25
Working Temperature Range (°C): -20 ~+40

Weight and dimensions

Weight (Kg): 0.505
Type of bezels: Visible Trim
Dimensions (mm): 88(D)X104.4(H)
Cut-Out (mm): Ø75
Recessed Depth (mm): 104.40
Ceilings Thickness (mm): 1-20
